Iris Recognition Door Lock Development Kit HS-QSOL-MI30

Brand Name : HOMSH

Model Number : MI30 Lock Development Kit

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiated

Payment Terms : T/T

Delivery Time : 5-8 work day

mergency power port : Micro-USB

input : 100~240v 50~60Hz 0.28A

exportation : 5v == 2A

Lithium battery charger : USB cable with MicroUSB interface

Contact Now

Iris Recognition Door Lock Development Kit HS-QSOL-MI30 Lock Development Kit



Description



Lock development Kit is our company designed to help customers and developers fast
Quickly familiar with and use of lock development and launched development kit, including the main control module, anti-demolition alarm module, MicroUSB emergency
Charging board, reset circuit board, speaker module and other peripheral resources, users can upgrade the development board through the main control board program burning interface
Firmware can also be developed as needed.







Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Main control board



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Serial number Description

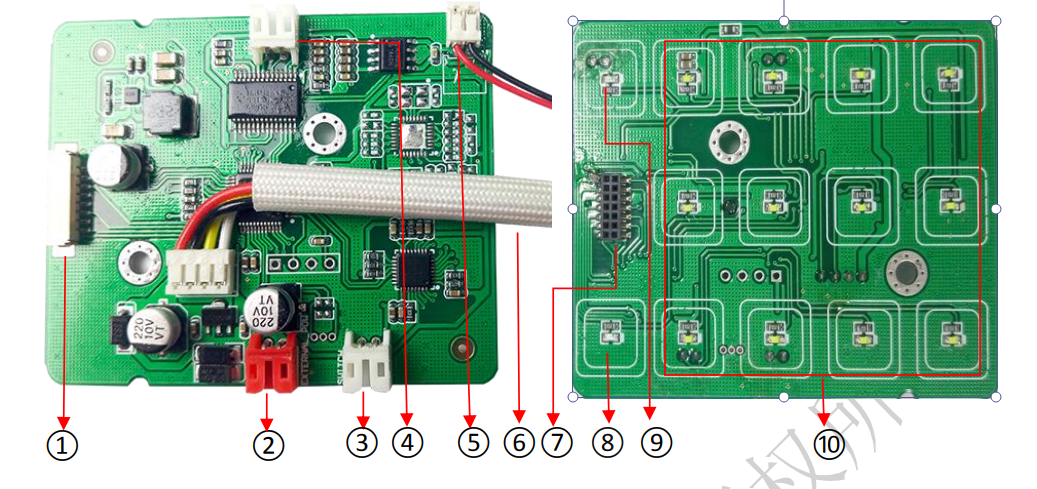

①  Optical module interface for optical module power supply and data exchange
②  Micro-USB emergency power port connects to the MicroUSB interface board of emergency   power
③  Anti-demolition alarm interface, connected to anti-demolition alarm module
④  Speaker module connection port
⑤  Lock motor connection cable
⑥  Connect cables to the reset switch circuit board
⑦  Touch pad connector (back of main control board)
⑧  Alarm light. When the password is entered incorrectly or the anti-disassembly alarm switch   is activated, the alarm light will flash automatically
⑨  Low voltage alarm light, when the battery supply voltage is lower than the standard value,   the low voltage alarm light will automatically light up
⑩  Digital key signal light, blinking once when touched, non-touched when extinguished;





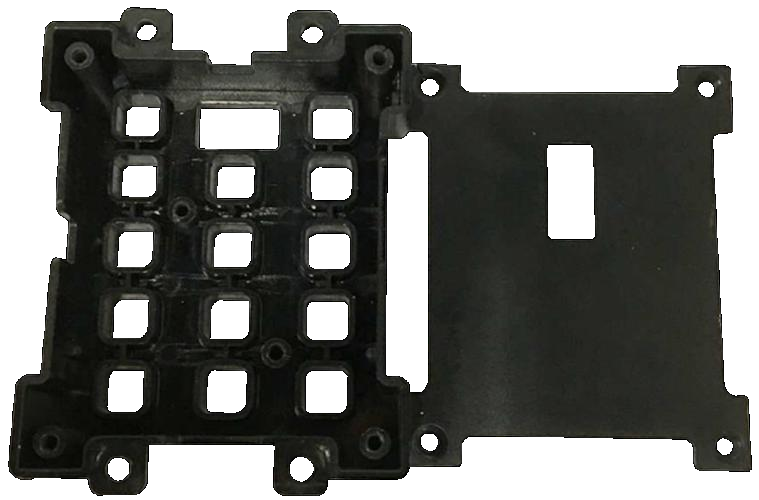

Introduction to the touchpad



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description

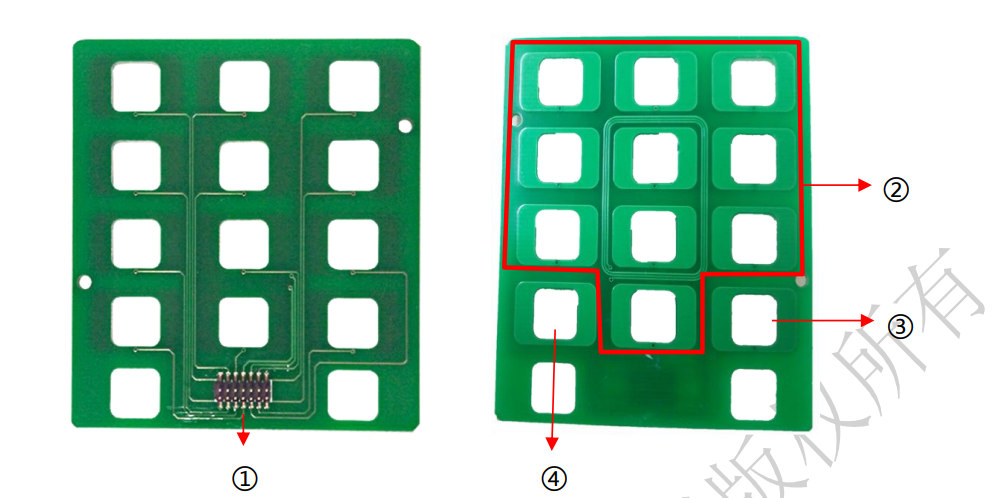

①  It is used to connect the touch board to the main control board
②  0 to 9 Digit touch keys
③  The "#" key is used to confirm
④  The “*” key is the return key



Anti-demolition alarm circuit board



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description

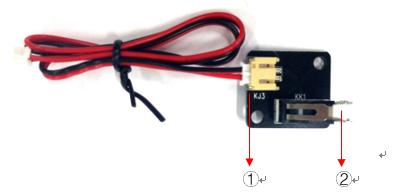

①  The alarm signal monitoring interface is connected to the corresponding interface of the main control board through cables
②  The anti-disassembly alarm switch is in normal state when pressed and in alarm state when lifted



Reset supply board



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description
①  Reset button: Used to initialize system Settings, press the button and release the button after 5s
The system automatically starts and completes the initialization
②  Carp battery power supply interface;
③  Cable port used to connect the main control board

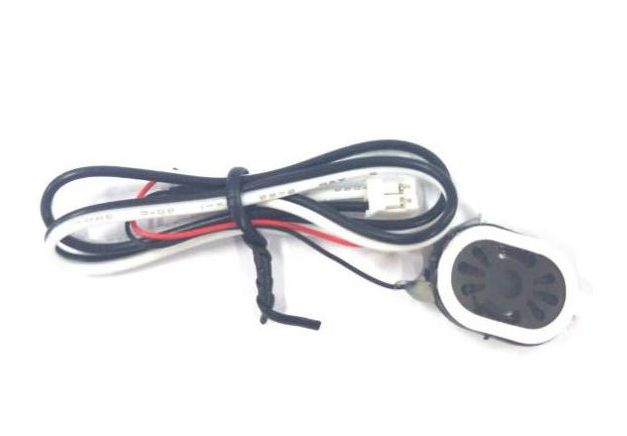

loudspeaker



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



filter



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description

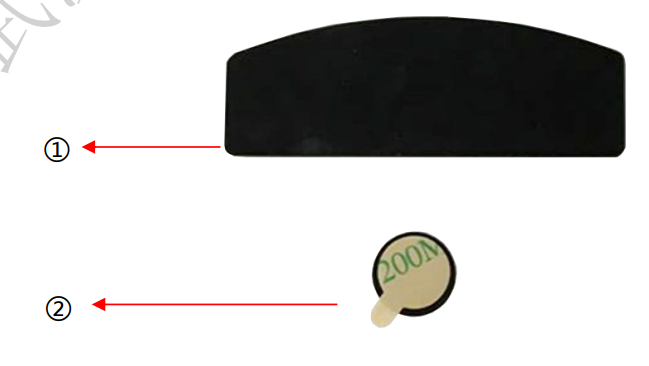

①  The filter eliminates the influence of visible light on the distance sensor and protects the distance sensor
②  Narrow band filter eliminates the influence of visible light on infrared imaging



Lithium battery and charger



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description

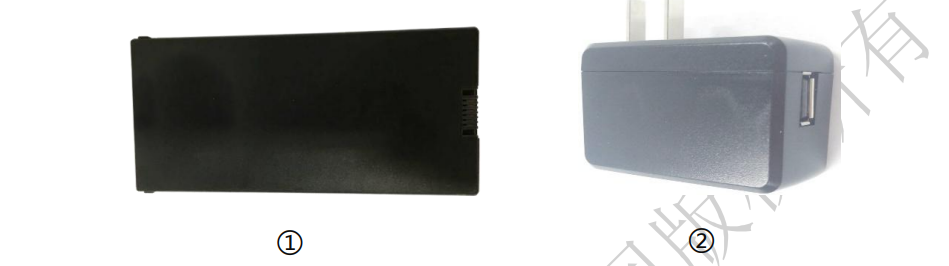

①  3.7v,18200mAh battery, charging with MicroUSB interface
②  Lithium battery charger (USB cable with MicroUSB interface)
Input :100 to 240v 50 to 60Hz 0.28A
 Output :5v == 2A

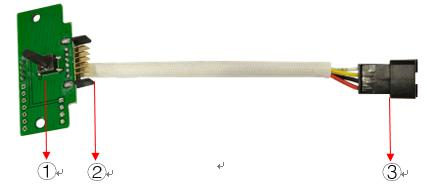

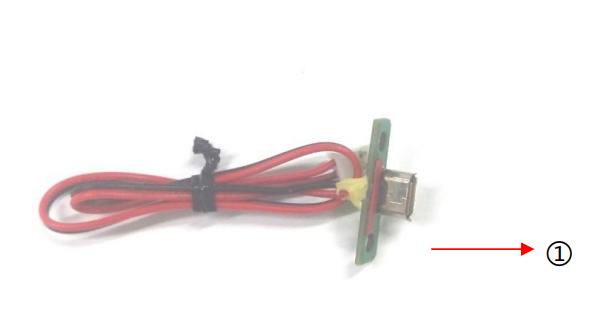

MicroUSB Emergency power supply board



Iris Recognition Door Lock Development Kit HS-QSOL-MI30



Sequence number Description
①  MicroUSB interface





Application



Help developers quickly get familiar with and use the lock development kit, take advantage of the rapid development of iris recognition lock products.
