Phaseiris I2c Module Arduino Algorithm Based With 10000 Person Internal Storage

Brand Name : HOMSH

Model Number : MD30-10K

Certification : ISO9001

Place of Origin : China

Payment Terms : T/T

Delivery Time : 5-8 work day

MOQ : 1

Price : Negotiated

Operating Temperature : -10℃~55℃

Operating Distance : 300mm~500mm

Product Dimensions (L*W*H) : 80*40*30mm

Power : 5W

Connection Interface : USB

Product Function : Iris Capture, Iris Recognition

Weight (Typical) : 55g

Recognition Mode : Single Eye/Both Eyes

Enrollment Time : 1s

Recognition Time : 1s

Image Resolution : 640 x 480

Image Frame Rate : 25 frames/s

Contact Now

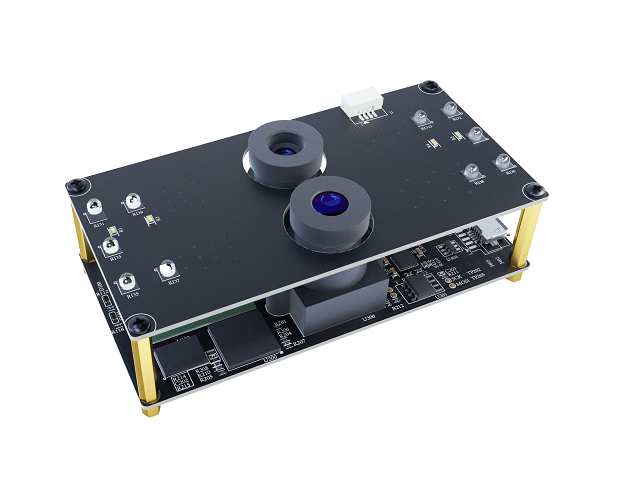

Phaseiris ™ Algorithm-Based USB 2.0 Iris Camera Module with 10000 Person Internal Storage

Description



Iris module adopts dual lens splicing technology to obtain a larger depth of field, increase the recognition range of the module, and improve the user experience; The module is designed for the application needs of miniaturized products in various door and consumer markets. Module small size, compact structure, USB2.0 communication interface, can be flexibly integrated into all kinds of terminal equipment, such as iris safe, convenient collector, iris access control, smart express cabinet, VTM and so on.



Functional



  • The module adopts the third-generation Phaseiris ™ iris recognition algorithm technology, which has a more accurate, fast and safe iris acquisition and comparison experience.
  • Module integrated 2 2 million pixel image sensors, equipped with dual lens splicing technology, greater recognition range;
  • Recognition distance 300mm~500mm;
  • False rejection rate (FRR) 10-3, false acceptance rate (FAR) 10-7;
  • Supports up to 200M video output;
  • Support 10000 people iris template local storage;
  • Iris comparison speed: 10000 template /s (USB real-time delivery);
  • USB application interface, provide the corresponding SDK development kit, easy for users to simple and fast development;
  • Support Windows XP/7/8/10, Linux, Android and other multi-system platforms.



Specification

Specification Details
Model MD30
Product Function Iris Capture, Iris Recognition
Connection mode USB
Power 5W
Product Dimensions (L*W*H) 80*40*30mm
Weight (Typical) 55g
Operating Distance 300mm~500mm
Recognition Mode Single Eye/Both Eyes
Auxiliary Alignment Mode Video Echo Prompt
Imaging Wavelength Band 700nm~900nm
Operating Illuminance 0~6000 Lux
Operating Temperature -10℃~55℃
Operating Humidity 0 – 93% RH

Performance Parameters:

Performance Parameter Details
Spatial Resolution > 4.0 lp/mm
  > 16 Pixels/mm
Image Resolution 640 x 480
Pixel Depth 8 bits/pixel
Image Frame Rate 25 frames/s
Enrollment Time 1s
Recognition Time 1s
Accuracy False Acceptance Rate (FAR) 10-7
  False Rejection Rate (FRR) 10-3

Compliance Standards:

Compliance Standard
Eye Safety Complies with IEC 62471 "Photobiological Safety of Lamps and Lamp Systems"
Image Standard Complies with national standard GB/T 33767.6-2018 "Iris Image Data"
Algorithm Performance Complies with national standard GB/T20979-2019 "Information Security Technology - Iris Recognition System Technical Requirements"



Application



Mainly used in iris access control equipment, equipment integration, etc.
